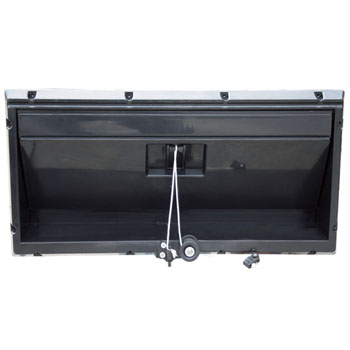

FC-1 Air Inlet
FC-1 Air InletMade by high-quality engineering plastic by injection molding, with a higher density, strong structure, and better anti-aging performance.Air guide plate is optional, which efficiently control the air flow direction.Anti-bird Protection net is connected bybolts
Features
FC- 1 Air Inlet
Made by high-quality engineering plastic by injection molding, with a higher density, strong structure, and better anti-aging performance. | |

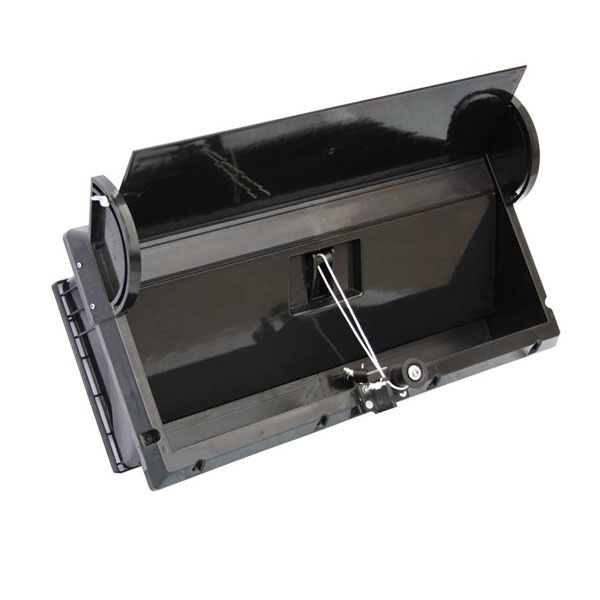

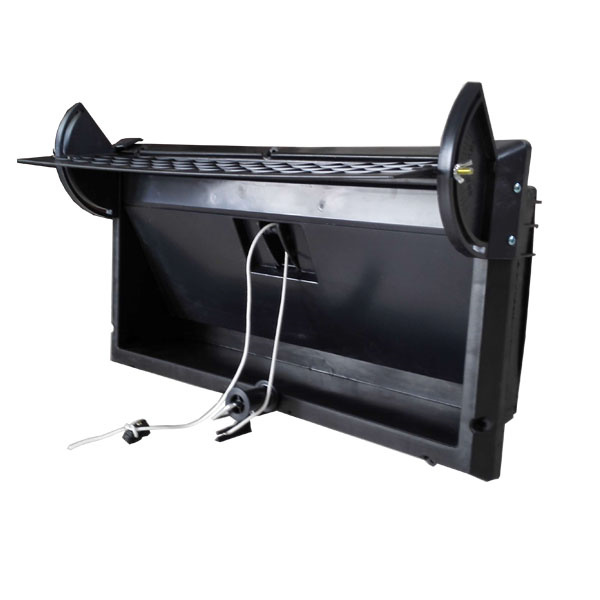

| Air guide plate is optional, which efficiently control the air flow direction. |

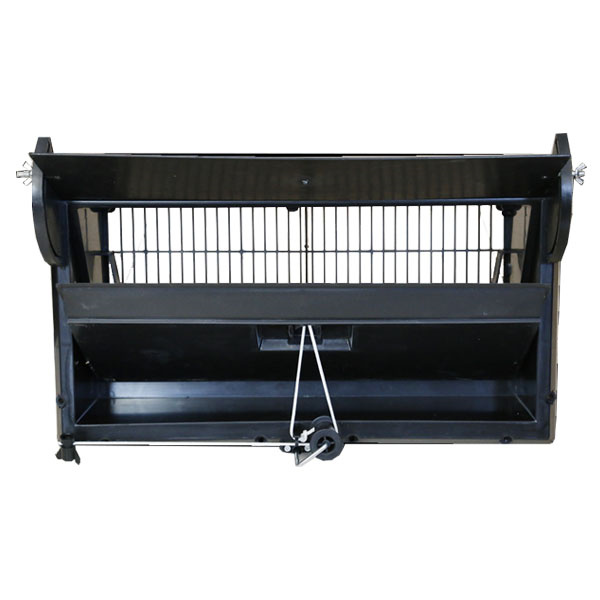

| Anti-bird Protection net is connected by bolts & nuts, which effectively avoid the damage in transportation. |

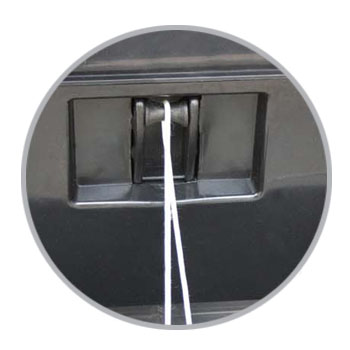

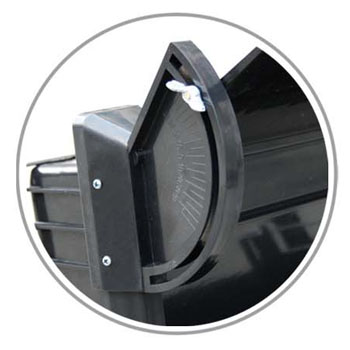

| A pulley device is used on the air inlet doors to reduce friction and enhance the rope service life. |

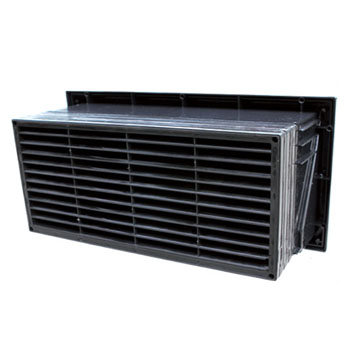

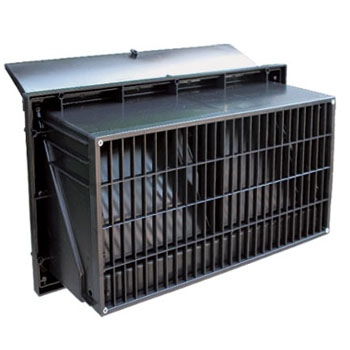

| Matched ligh filter can be customzied. |

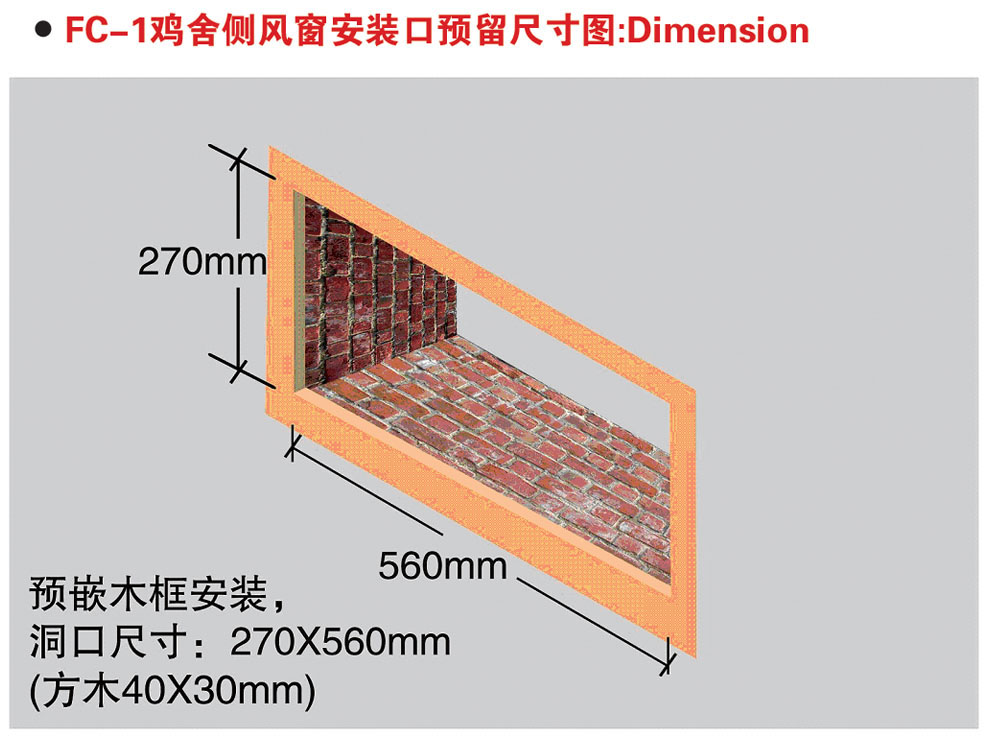

FC-1 Air inlet reserved installation dimention diagram:
Installation tips:
① The installation wall must be in a same line;
② 15cm scope from the air inlet must be solid wall to enable catch
expansion bolts(Hollow wall is prohibited);
③ In avoid the rain flow backward,The hole bottom inner side must be higher than outer side;
④ Reserved wooden-frame must be in a same line with installation wall;
⑤ Reserved Hole Dimention: 560×270mm

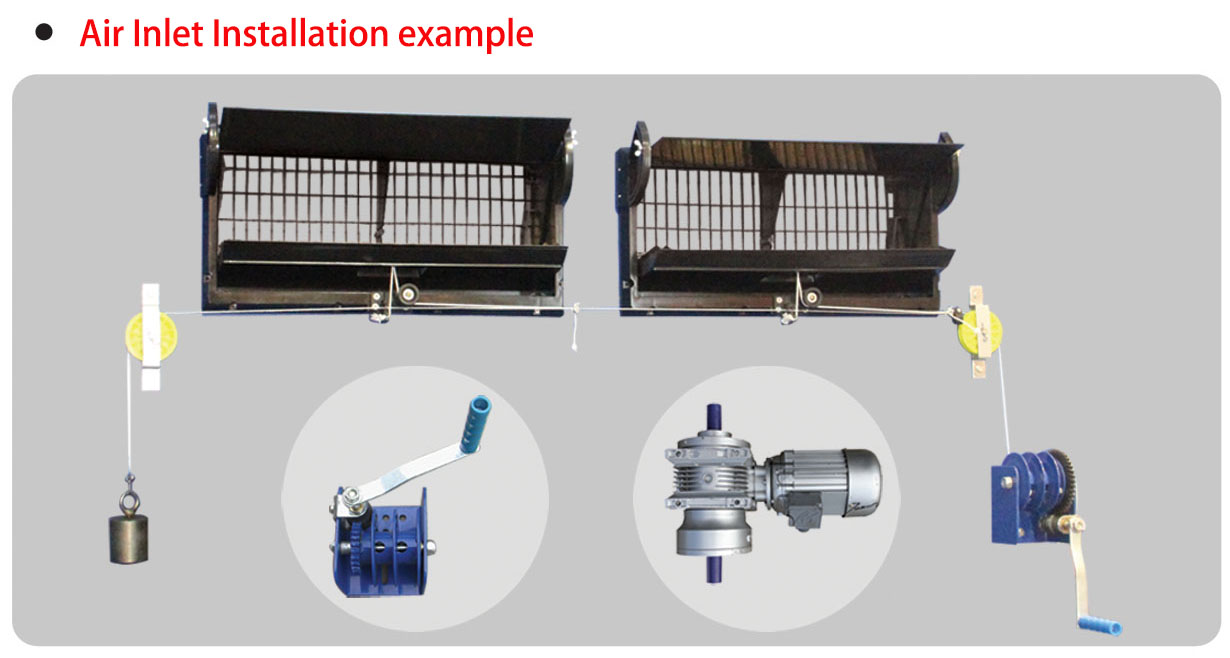

FC-1 Air Inlet Installation Diagram:
